Drymatic II - Complete Kit
Drymatic II - Complete Kit
Price on Asking
Quiet, intelligent & energy-efficient
Can operate as a Positive, Negative, or Balanced Drying System
Heat & Air Exchange to optimise drying conditions
Excels in Class 4 Specialty Drying situations (e.g. Header Tank Bursts, Flash Flooding, Hardwoods, and Dense Building Materials)
Flexible system with a range of attachments
28 kg - Rotomoulded and stackable
SAVE ££ and get the Drymatic II with a Y-piece, Injection Drying Kit, and Exhaust Reducer Kit.
Interested in buying this special?
Description
The award winning DBK Drymatic System was developed to offer the Damage Management industry a cost-effective tool that would cater for a broad range of structural drying requirements including floor drying and moisture removal.
This kit includes all of our Drymatic II adaptors:
DRYMATIC II
Y PIECE KIT
INJECTION KIT
KITCHEN KIT
EXHAUST ADAPTOR KIT

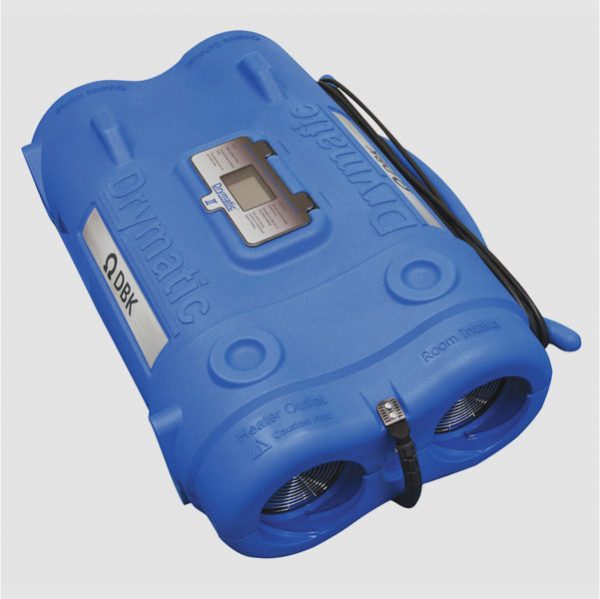

DRYMATIC II
Quiet, intelligent & energy-efficient
Can operate as a Positive, Negative, or Balanced Drying System
Heat & Air Exchange to optimise drying conditions
Excels in Class 4 Specialty Drying situations
Flexible system with a range of attachments
Stackable rotomoulded double skinned housing/body
Weight is only 28kgs
Portable, plugs into a standard 13 Amp Power Outlet (no gas or diesel required)
Touch-safe heater outlet
Quick-fix hose connection
Wheels for easy maneuverability
Significantly reduces drying life cycles
Enhance your experience with the 7 Port Adaptor Kit – turn your Drymatic II into a Push/Pull cavity drying system!
Includes: 3 x 6m of 150mm Grey Hoses; 1 x 6m of 150mm Foil Hose, 4 x rotomoulded screw in connections; 4 x Jubilee clips; and a hose bag
HOW IT WORKS

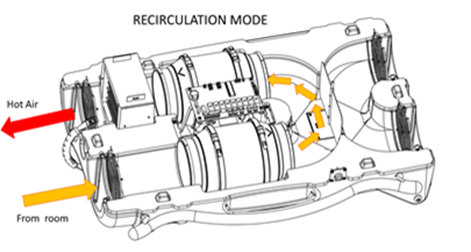

Recirculation Mode
During re-circulation Mode the Drymatic II takes air in through the Room Intake, measuring Temp and %RH, and then reheats the air to help raise the ambient temperature within the drying chamber.
The drying chamber is continuously heated up until either a user-defined Temperature (C/F) or Relative Humidity (%RH) limit is reached, or until the machine determines that the system needs to make a change based on rates of change within the drying environment.
The Drymatic II uses re-circulation mode to maximise temperature gain, whilst minimising heat loss through the Exhaust process.
Exhaust Mode
In Exhaust Mode the Drymatic II takes air in from the Room Intake and purges it straight through the machine to outside via the Outside Exhaust - exhausting up to 595m3/hr of air. At the same time the machine takes in replenishment air from an unaffected area (e.g. outside air, air from an unaffected space, or process air from a HVAC system or dehumidifier) and heats that air before pushing it in to the drying chamber.
The Drymatic II can autonomously cycle between the Re-circulation and Exhaust modes to maximize the amount of water removed from the area.
THE ADAPTOR KITS
DRYMATIC II INJECTION DRYING/EXTRACTION ADAPTOR KIT
Further enhance your Drymatic II experience!
Turn your Drymatic II into a Push/Pull cavity drying system using our 7-Port adaptors and hose kit. Create Positive, Negative or Balanced drying regimes by manipulating the number of connections fitted.
INCLUDED 2 x Drymatic II Multi-port Adaptors (38mm); 30m of 38mm Hoses; 14 x Hose Cuffs; 1 x Carry Bag

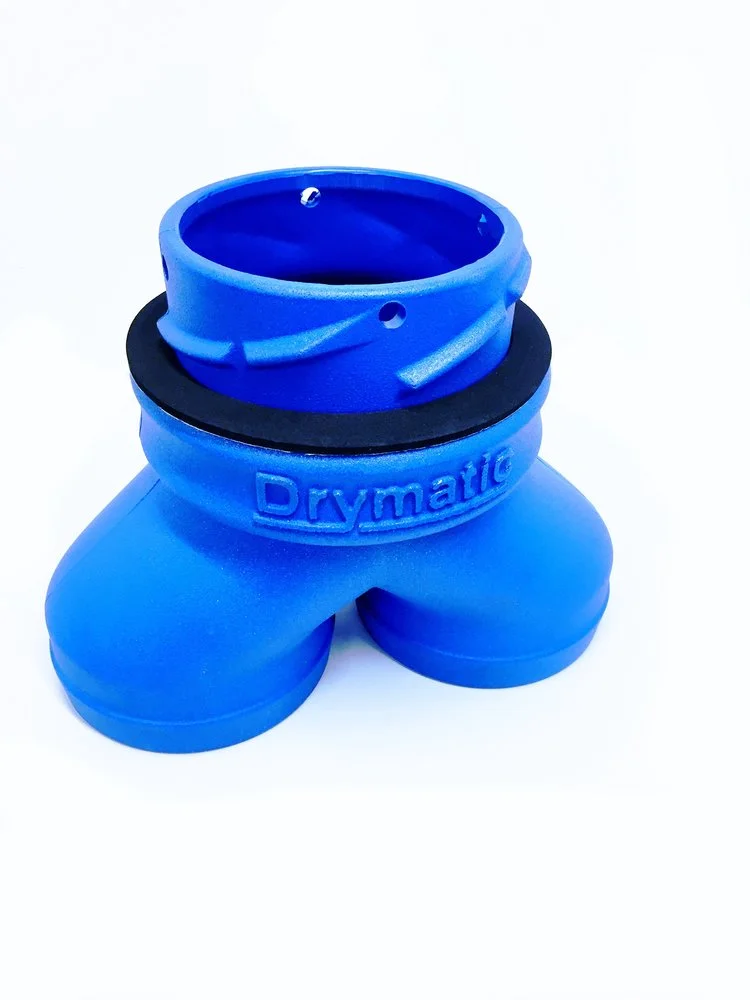

DRYMATIC II Y PIECE ADAPTOR KIT
The Y-piece splitter allows you to direct your airflow into separate chambers from the Drymatic II. This Y-Piece allows you to duct the controlled heated airflow into 2 areas.
INCLUDED Y Piece Adaptor 3 x 5m 150mm Hose; 3 x Jubilee Clips; 1 x 150mm to 150mm Joiner; 1 x Carry Bag
DRYMATIC II EXHAUST ADAPTOR KIT
The Exhaust adaptor allows the Drymatic II Outside Exhaust duct to be reduced from 150mm to 100mm which allows you to exhaust your Drymatic II into a smaller aperture, such as a letterbox, kitchen extraction fan, or air-vent.
INCLUDED 1 x 150mm to 100 Reducer Adaptor; 2 x Jubilee Clips ;1 x 6m of 100mm Hose
KITCHEN KIT
The Kitchen Kit gives you the ability to further reduce the size of your hose so that you can gain access to even harder to reach areas. The reducers drop the hose down from 38mm to 25mm and this is perfect for insertion into the base of kitchen cabinetry. Simply pop in a flush-mount vent cover when you are done.
INCLUDED 14 x 38mm to 25mm Step Down Connectors and 2.5m of 25mm Black Hose
The Kit
DRYMATIC II
