Drymatic II with Y Piece Kit & Exhaust Kit
Drymatic II with Y Piece Kit & Exhaust Kit
Price on Asking
Quiet, intelligent & energy-efficient
Can operate as a Positive, Negative, or Balanced Drying System
Heat & Air Exchange to optimise drying conditions
Excels in Class 4 Specialty Drying situations (e.g. Header Tank Bursts, Flooding, Hardwoods, and Dense Building Materials)
Flexible system with a range of attachments
28kg - Rotomoulded and Stackable
Save ££ and get the DRYMATIC II with a Y PIECE and EXHAUST ADAPTOR KIT
Interested in buying this special?
Description
The award winning DBK Drymatic System was developed to offer the Damage Management industry a cost-effective tool that would cater for a broad range of structural drying requirements including floor drying and moisture removal.
This kit includes:
DRYMATIC II
Y PIECE KIT
EXHAUST ADAPTOR KIT

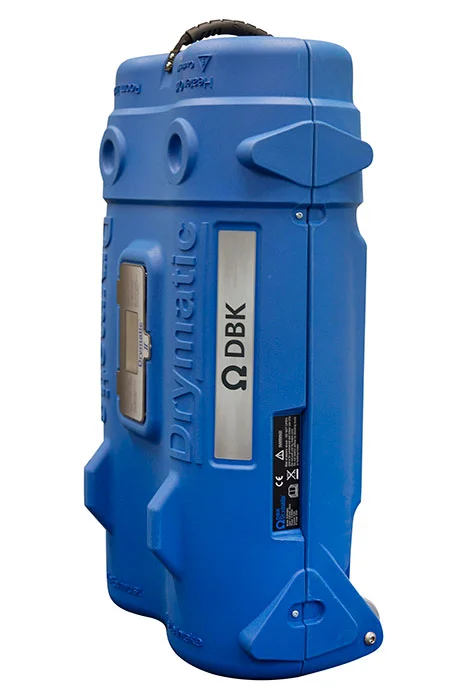

DRYMATIC II
Quiet, intelligent & energy-efficient
Can operate as a Positive, Negative, or Balanced Drying System
Heat & Air Exchange to optimise drying conditions
Excels in Class 4 Specialty Drying situations
Flexible system with a range of attachments
Stackable, rotomoulded double skinned housing/body
Weight is only 28kgs
Portable, plugs into a standard 13 Amp power outlet (no gas or diesel required)
Touch-safe heater outlet
Quick-fix hose connection
Wheels for easy maneuverability
Significantly reduces the drying life cycles
Included: 3 x 6m of 150mm Hose; 1 x 6m of 150mm Foil Hose; 4 x rotomoulded screw in connections; 4 x Jubilee clips; and a hose bag
HOW IT WORKS
Recirculation Mode
During Re-circulation Mode the Drymatic II takes air in through the Room Intake, measuring Temp and %RH, and then reheats the air to help raise the ambient temperature within the drying chamber.
The drying chamber is continuously heated up until either a user-defined Temperature (C/F) or Relative Humidity (%RH) limit is reached, or until the machine determines that the system needs to make a change based on rates of change within the drying environment.
The Drymatic II uses Re-circulation Mode to maximise temperature gain, whilst minimising heat loss through the Exhaust process.
Exhaust Mode
In Exhaust Mode the Drymatic II takes air in from the Room Intake and purges it straight through the machine to outside via the Outside Exhaust - exhausting up to 595m3/hr of air. At the same time the machine takes in replenishment air from an unaffected area (e.g. Outside Air, Air from an Unaffected Space, or Process Air from a HVAC System or Dehumidifier) and heats that air before pushing it in to the drying chamber.
The Drymatic II autonomously cycles between the two modes of operation to maximize the amount of water removed from the area.
THE ADAPTOR KITS
DRYMATIC II Y PIECE ADAPTOR KIT

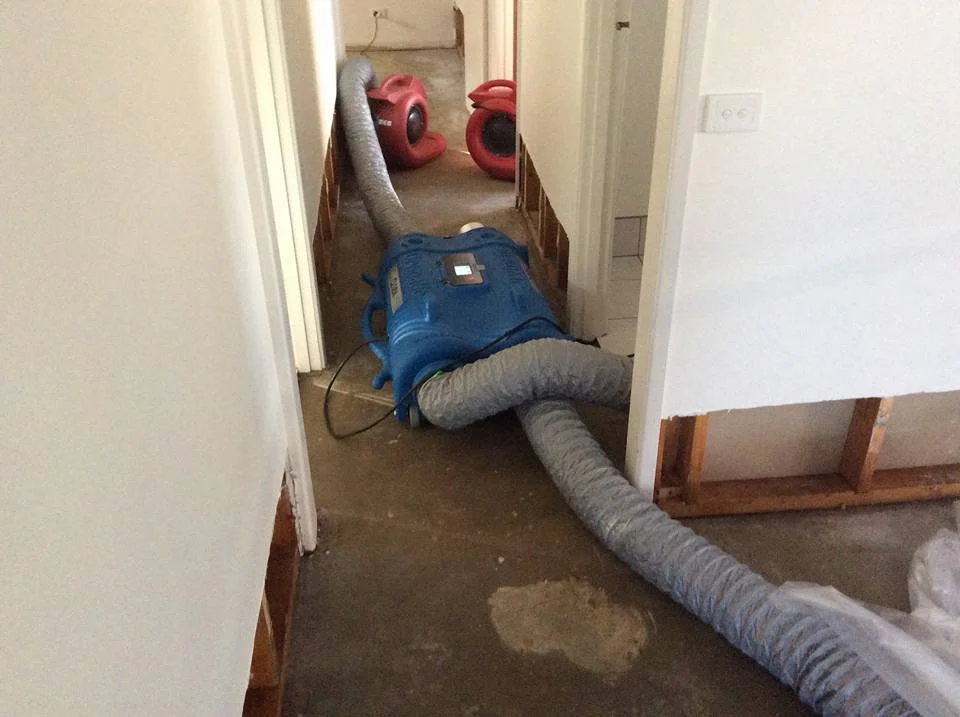

The Y-piece splitter allows you to direct your airflow into separate chambers from the Drymatic II. This Y-Piece allows you to duct the controlled heated airflow into 2 areas.
INCLUDED Y Piece Adaptor; 3 x 5m of 150mm Hose; 3 x Jubilee Clips; 1 x 150mm to 150mm Joiner; 1 x Carry Bag
DRYMATIC II EXHAUST ADAPTOR KIT
The Exhaust adaptor allows the Drymatic II Outside Exhaust duct to be reduced from 150mm to 100mm which allows you to exhaust your Drymatic II into a smaller aperture, such as a letterbox, kitchen extraction fan, or air-vent.
INCLUDED 1 x 150mm to 100mm reducer Adaptor; 2 x Jubilee Clips; 6m of 100mm Hose
The kit
DRYMATiC II
